Spectrum Recorder Network and USB Spectrum Data Recorder for Wireless Microphones and IEMs

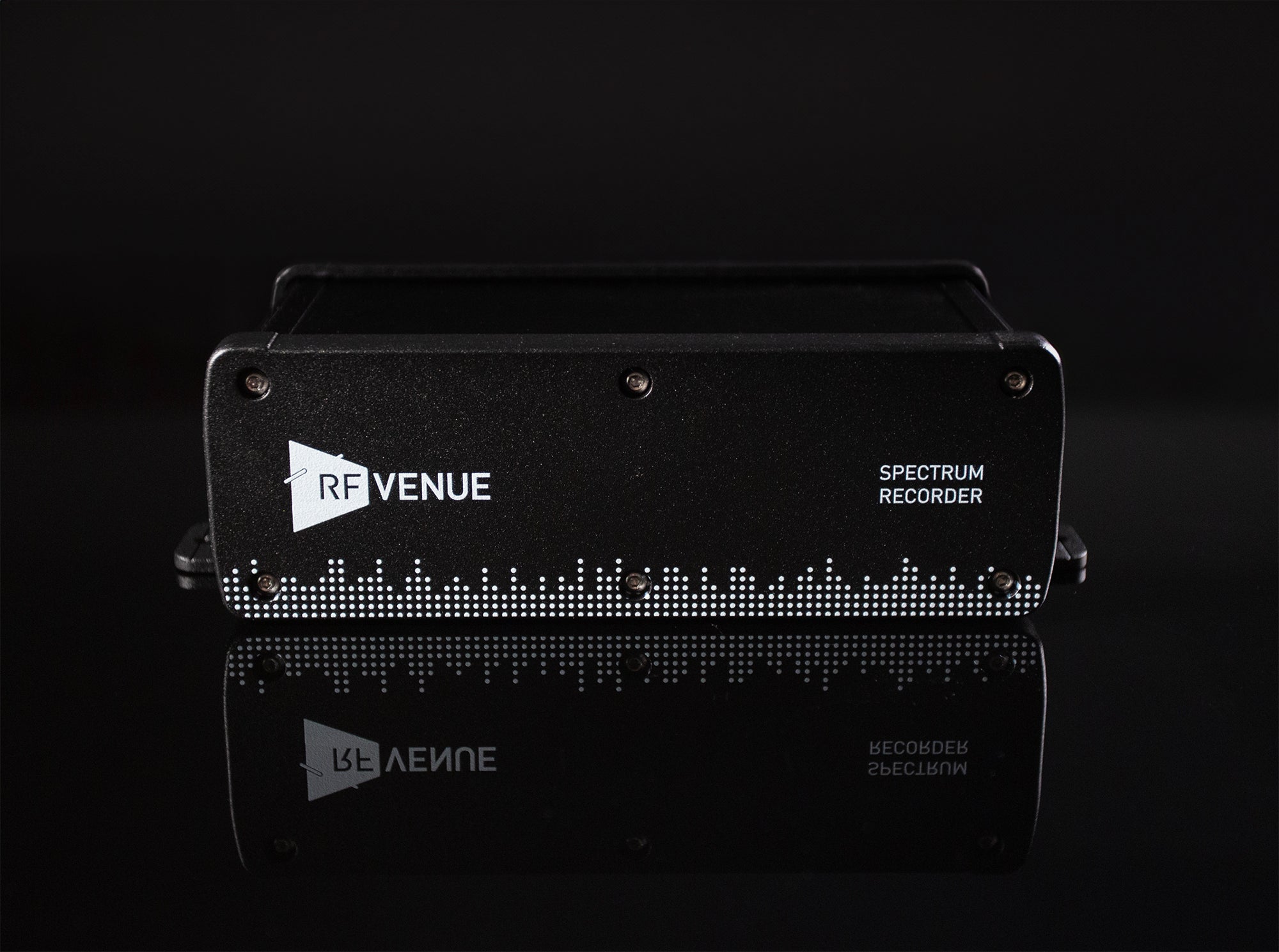

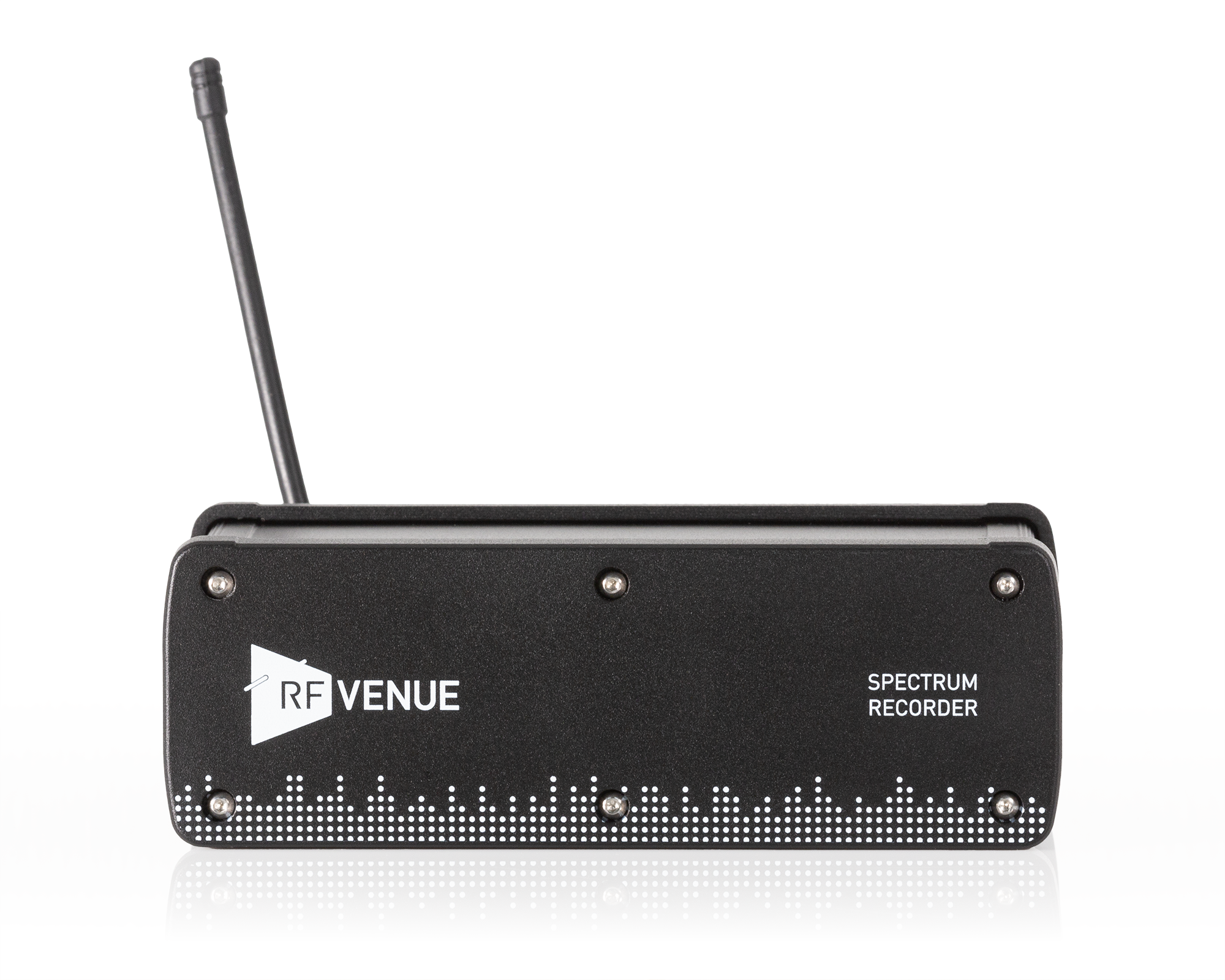

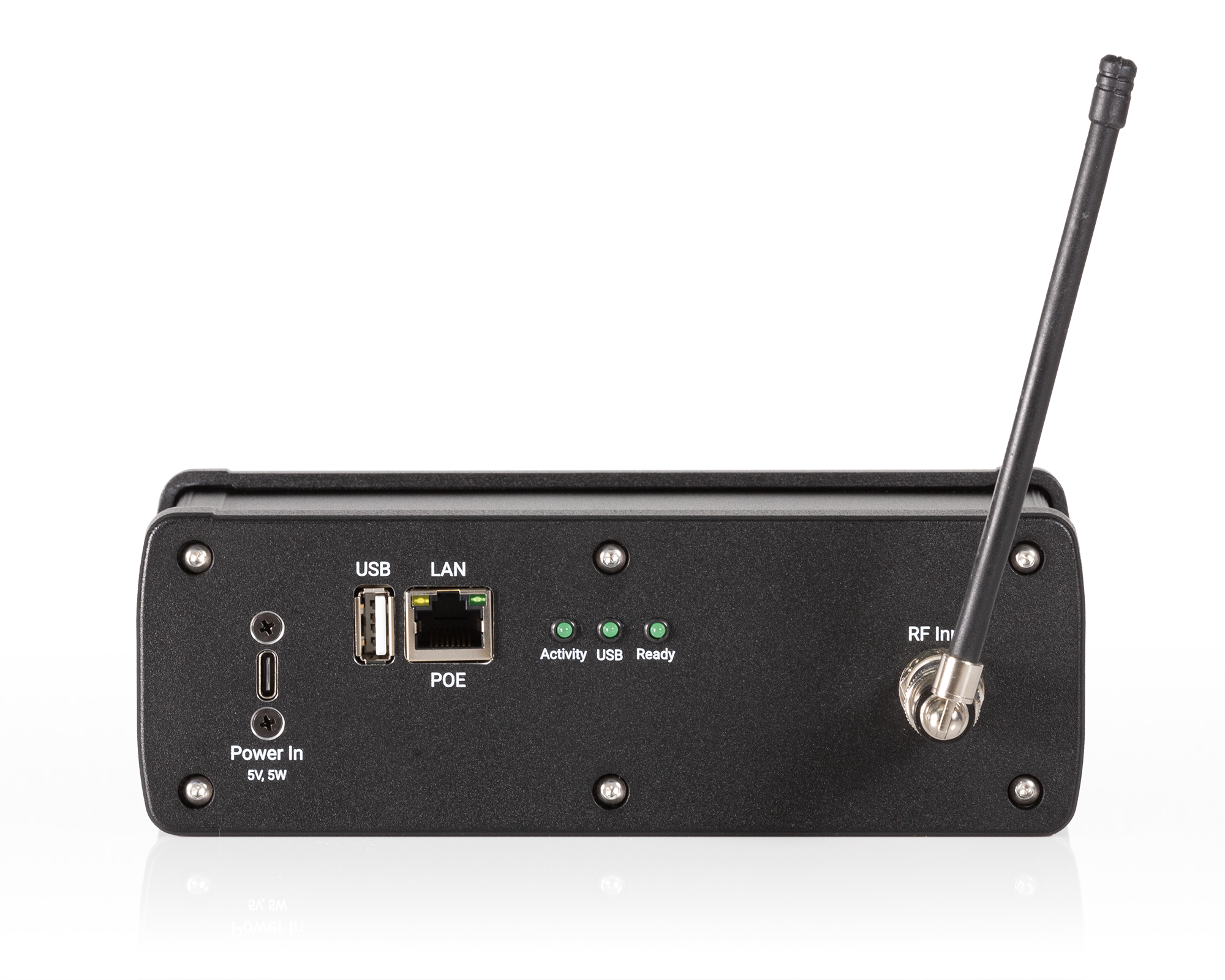

The RF Venue Spectrum Recorder is a compact, standalone data recording device designed to assist in monitoring and optimizing wireless microphone and in-ear monitor systems. Spectrum Recorder continuously captures RF spectrum activity in the 400-700 MHz band, and writes CSV-formatted scan files to its internal storage drive. These time stamped scan files can be retrieved directly with a USB thumb drive or accessed remotely over a local network connection. Connect Spectrum Recorder directly to your wireless microphone antenna system or use the included whip antenna to capture spectrum for a site survey. PoE capable and battery ready, the Spectrum Recorder is small and lightweight enough to easily ship to a remote location or deploy across many rooms on a fixed installation. Spectrum Recorder's data can be uploaded to RF Venue's free web-based Wireless System Builder tool for system design and frequency coordination, or imported natively to third party software like Shure® Wireless Workbench and Audio-Technica® Wireless Manager. No software installation is needed, and no cloud subscriptions are required.Features* Automatic Spectrum Recording: Instant and continuous capture of spectrum activity from 400-700 MHz. No spectrum analyzer or complex test equipment required.* 24 Hour Scan Data Capture: See the entire scope of spectrum activity over 24 hours. Max Hold and Average scan views are captured and calculated automatically. * Active Frequencies Scan: Separate fixed transmitters such as DTV stations from surprise interference sources. The Active Scan compiles hard to detect frequencies to help protect your wireless system from interference hits. * Power Over Ethernet (PoE) Capable: Deploy Spectrum Recorder where needed with just an ethernet connection. Easily cover multiple rooms, buildings, or studios with a network of Spectrum Recorders.* Battery Power Ready: No power? No problem. Spectrum Recorder's 5V USB-C DC power input can accommodate common portable power banks used for charging mobile devices. A 10,000 mAh battery can power Spectrum Recorder for several days.* No Software Installed, No Subscription Fees: Spectrum Recorder does not connect to any outside services or require any onsite software installation. IT professionals can use the Spectrum Recorder MAC address to assign a fixed IP address if desired. * Updates and Upgrades: Look for exciting new capabilities for the RF Venue Spectrum Recorder as it grows and develops into the primary hub for all your RF spectrum data. Specifications* 400-700 MHz scan range* 25 KHz resolution bandwidth* 50 Ohm BNC Input* -130 to +10 dBm Dynamic Range* -120 dBm Average Noise Floor* 5V USB-C Power Connector
